Description

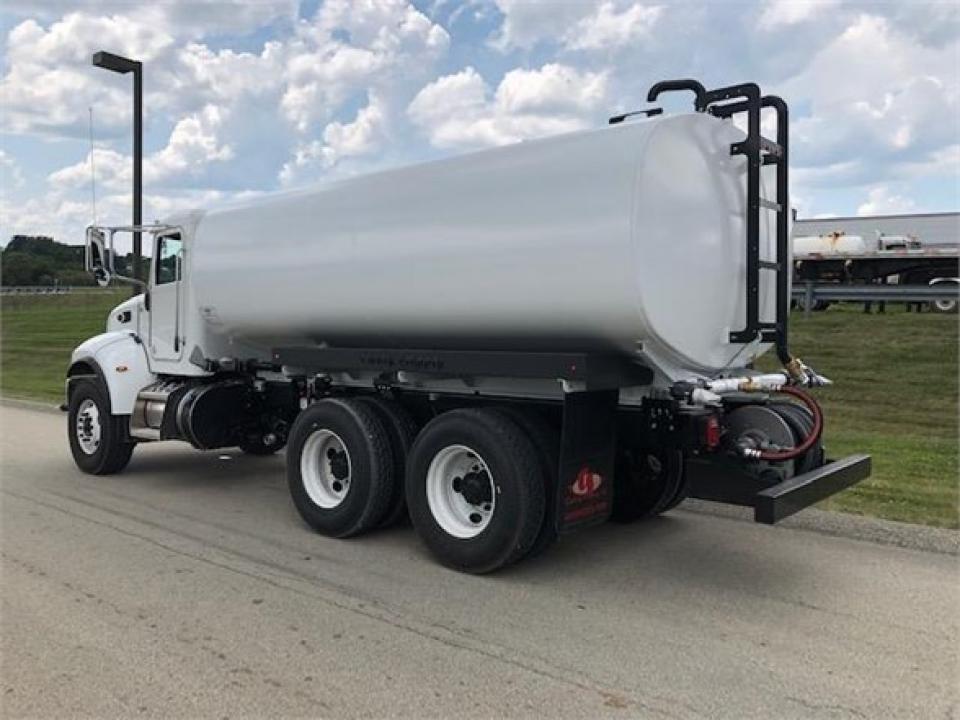

CurryWater 4000 gallon (12 UNITS CURRENTLY BEING BUILT) Model: CW4 Capacity: 4,000 US gallons Dimensions: 198" long x 96" wide x 64.75" tall Tank shell: A36 steel Tank ends: A36 steel, domed with flange Tear pad: A36 steel Tank baffles: (2) A36 steel w/ 20" crawl hole Tank runners: A36 steel, formed angle style, full length Tank shape: Modified ellipse, large radius corners Man-way: 24"round man-way, mesh lift out grate, no lid Fill pipe: 2-1/2" pipe, ball valve, and cam groove coupler Ladder: Rear mounted, pipe construction, anti-slip rungs Fenders: A36 steel, spray lined finish, black only, trough style tray Level indicator: Yes Interior coated - Yes Requires a 120" - 126" CT for proper tank installation 3 1 CW-WS On-Road Water- Water System 4x3 water pump Shaft Driven And all required plumbing and fittings 4 1 On-Road Water W/Creek Fill On-Road Water Creek Fill Suction, No primer pump 5 1 On-Road Water Front Spray Bar On-Road Water Front Spray (2) front spray valves and nozzles individually controlled Spray bar assembly, steel construction 6 1 On-Road Water Side Spray On-Road Water Side Spray (1) Spray valve and nozzle, individually controlled, driver side 7 1 On-Road Water Rear Spray On-Road Water Rear Spray (2) Spray valves and nozzles, individually controlled Spray bar assembly, steel construction 8 1 On-Road Water Hose Reel On-Road Water Hose Reel Manual rewind hose reel, 50' x 1-1/2" hose, Firemans nozzle end Mounted on rear bumper assembly 9 1 CW-TP On-Road Water Tank Parts Tie down hardware and misc parts 10 1 On-Road Water Electrical On-Road Water Electrical Incandescent lights (standard) FMVSS/DOT compliant Sealed wire harness 11 1 CW-SK On-Road Water Saftey Kit 5lb fire extinguisher Warning triangle set 12 1 MD250-2.5FABN STXC50 2-1/2" x 50' Water Truck Hydrant Hose 13 1 CW-SHK 3" Suction Hose Kit contains : (2) 3" x 10' MxF Cam & Groove (1) 3" x 10' Female Cam & Grove x 3" Suction Strainer 14 1 3/4" & 1-1/2" ball valve, driver side front of tank 15 1 RS-73B-720NCS Curry Supply Back Up Camera - Installed 16 1 PTO PTO 17 1 CW-INST-S Standard on-road water system install, Install by Curry
Features
...
